LiDAR Comparison Chart


View PDF Version

Manufacturer LiDAR Horizontal FOV Min Range Max Range Distance Resolution Scan Rate Interface Horizontal Angular Resolution Vertical FOV Power Voltage Mass Size
ibeo Automotive

Features: Long Range, Multi-Echo, Embedded Object Tracking/Classification, Automotive Quality, IP69K. Custom
Sensor “Fusion” Systems Are Available. Tracks Ip to 64 Objects. Up To 6 On Sensor Fusion System.
LUX 2010 Standard 4 Layer 110° (50° to -60°) <0.3m 200m (90%) 4cm 12.5Hz, 25Hz, 50Hz Ethernet, CAN Up to 0.125° 3.2° 7W Avg.,
<10W Max
9V-27V ~1kg W164.4mm x D93.2mm x H88mm
ibeo Automotive

Features: Long Range, Multi-Echo, Embedded Object Tracking/Classification, Automotive Quality, IP69K. Custom
Sensor “Fusion” Systems Are Available. Tracks Ip to 64 Objects @12.5 Hz. Up To 6 On Sensor Fusion System
IBEO LUX HD 110° (50° to -60°) <0.3m 120m (90%) 30m (10%) 4cm 12.5Hz, 25Hz, 50Hz Ethernet, CAN Up to 0.125° 3.2° 7W Avg.,
<10W Max
9V-27V ~1kg W164.4mm x D93.2mm x H88mm
ibeo Automotive

Features: Long Range, Multi-Echo, Embedded Object Tracking/Classification, Automotive Quality, IP69K. Custom
Sensor “Fusion” Systems Are Available. Tracks Up To 64 Objects @ 6.25 Hz.
IBEO LUX 8 Layer 110° (50° to -60°) <0.3m 200m (90%) 4cm 6.25Hz, 12.5Hz, 25Hz Ethernet, CAN Up to 0.125° 6.4° 8W Avg.,
<10W Max
9V-27V ~1kg W164.4mm x D93.2mm x H88mm
ibeo Automotive

Features: Long Range, Multi-Echo, Embedded Object Tracking/Classification, Automotive Quality, IP69K. Custom
Sensor “Fusion” Systems Are Available. Tracks Up To 64 Objects @ 6.25 Hz.
IBEO SCALA B2 145° (4L) <0.3m 327m (100%) 4cm 25Hz CAN, BroadReach/Ethernet 0.25° 3.2° <7W 9V-16V 510g W108mm x D100mm x H60mm
Hokuyo

Features: Long Distance Laser Range Finder. Available for Outdoor Use Because Of 100,000 LUX for Ambient
Illuminance and IP64 For Protective Structure.
UTM-30LXEW 270° 0.1m 80m (90%) 0.1-10m, ±3cm 40Hz Ethernet 0.25° N/A° 8W 12V ± 10% 210g W60mm x D60mm x H87mm
10-30m, ±5cm
Hokuyo

Features: Compact, Lightweight and Shock Resistant Indoor Range Finder with Low Power Consumption. IP65.
UST-05LN 270° 0.06m 5m 0.06-5m, ±4cm 40Hz Ethernet 0.5° N/A 3.6W Avg, 9.6W Max 10V-30V 130g W50mm x D50mm x H70mm
Hokuyo

Features: Compact, Lightweight and Shock Resistant Indoor Range Finder with Low Power Consumption. IP65.
UST-10LX 270° 0.02m 10m 0.2-10m, ±4cm 40Hz Ethernet 0.25° N/A 3.6W Avg, 9.6W Max 12V-24V 130g W50mm x D50mm x H70mm
UST-20LX 20m
Hokuyo

Features: Outdoor Laser Range Finder, Multi-Echo Detection Ideal for Outdoor Applications. Performs Well
in Rain, Snow, Mist and Dust. IP67.
UXM-30LXEW 190° 0.1m 80m (90%) 0.1-10m, ±5cm / 10-30m, ±10cm 20Hz Ethernet 0.25° N/A 6W Avg, 18W Max 10V-30V ~550g 124mm x 126mm x 150mm
Leddartech

Features: 16 Independent segments with simultaneous acquisition and lateral discrimination abilities. Rapid
Data Acquisition. Low Power Consumption.
M16 Up To 95° 100m @ 9° HFOV 1cm 50Hz USB, RS485, CAN, UART 0.563° to 5.938° N/A 4W 12V or 24V 180g 104mm x 66mm x 48mm
Leddartech

Features: Lightweight and Robust. Rapid Refresh Rate. Flexible Integration and Customization. Other Lens
Options Available for Wider FOV
Vu8-020 20° 60m (90%) 1cm Up to 100Hz SPI or USB, CAN, UART, RS-485 2.5° 0.3° to 3.0° 2W 12V 110g 70mm x 35.2mm x 67.5mm
Ocular

Features: Robust and Lightweight Device with A Simple Power and Ethernet Interface. 3 Scanning Modes: Full
Field, Bounded Elevation, And Region Scanning. Max Elevation Rate of 3Hz.
RE05 360° 160m (100%) N/A 15 Hz Horizontal, 3Hz Vertical Ethernet Variable ±35° 50W 24V IP65 2.8kg, IP67 3.0kg
Ocular

Features: Robust and Lightweight Device with A Simple Power and Ethernet Interface. 3 Scanning Modes: Full
Field, Bounded Elevation, And Region Scanning.
RE08 360° 270m (80%, Extended Range Mode) N/A 15 Hz Horizontal, 3Hz Vertical Ethernet Variable ±35° 100W 24V 9.1kg

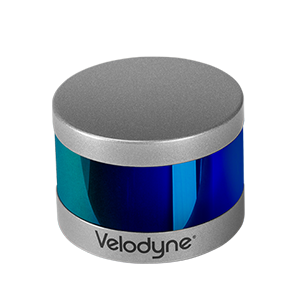

Velodyne

Features: Lightweight, 360° FOV, 3D Point Clouds Ideal for Mapping and Autonomous Applications.
LiDAR PUCK 360° 1m 100m 5Hz-20Hz 100Mbps Ethernet 0.2° @ 10Hz 15° to -15° 8W 9V-32V 830g H72mm x Diam LiDAR 103mm
LiDAR PUCK Lite 590g
Velodyne

Features: 32 Channels, Dual Returns, Low Power Consumption
VLP-32C 360° 1m 200m 5Hz-20Hz 100Mbps Ethernet 0.1° to 0.4° -25° to +15° 10W 10.5V-18V ~925 g 103mm W X 86.9mm H
Velodyne

Features: Lightweight, 360° FOV, 3D Point Clouds Ideal for Mapping and Autonomous Applications.
HDL-32E 360° 1m 100m 5Hz-20Hz 100Mbps Ethernet 0.17° @ 10Hz 2° to -24.9° 60W 12V-32V 12.7kg 215mm Diam x 283mmH
Triple-IN

Features: Ultra Lightweight with Very High Accuracy in Range and Angle. Fast Scan Rate. Available in Normal,
Fine, and Fast Modes. IP65.
Lightweight 90° 1.6m 80m (10%), 250m (100%) 1mm 20Hz – 40Hz Ethernet, RS232, Discrete Switching Outputs 0.023° to 0.18° N/A 7W 24V ± 5V <1kg 124mm x 254mm x 100mm
Triple-IN

Features: 2D Pulse Scanner. Long Range with Very High Accuracy in Range and Angle. IP67.
PS100-90 90° 0.6m 170m @ (100%) 1mm 20Hz – 40Hz Ethernet, RS232, Discrete Switching Outputs 0.023° to 0.18° N/A 7W 24V ± 5V 2.6kg 247mm x 121mm x 109mm
PS250-90 1.8m 250m @ (100%)
PS300-90 2.1m 300m @ (100%)
Triple-IN

Features: 2D Pulse Scanner. Long Range with Very High Accuracy in Range and Angle. IP67.
PS150-270 270° 0.8m 160m 1mm 5Hz – 20Hz Ethernet, RS232, Discrete Switching Outputs 0.045° to 0.18° N/A 8W 24V ± 5V 2.6kg 260mm x 123.6mm x 130mm
PS250-270 2.0m 200m
Neptec

Features: Designed for Harsh Environments. Both Conical and Panoramic FOV. Very Long Range.
OPAL 3 Conical 45°, 60°, 120° 500m or 1000m (20%) Contact Us GigE Rosette Type Overlapping Pattern 45°, 60°, 120° 110W (250W Max) 18V-36V <12.7 kg 178mm x 178mm x 338mm
OPAL 3 Panoramic 360° 5° to -40° <13.2 kg 178mm x 178mm x 456 mm
SICK

Features: 2D Pulse Scanner. Long Range with Very High Accuracy in Range and Angle. IP67.
LMS 111 270° 0.5m 20m 50Hz, 25Hz Ethernet, RS232 0.25°-0.5° N/A 8W (35W w/ Heat) 10.8V-30V 1.1kg 105mm x 102mm x 126mm
LMS 151 0.5m 50m
SICK

Features: Rugged, Outdoor, Compact. Wide-Range and Low Sensitivity to Ambient Light. IP67.
LMS TiM55 270° 0.05m 8m (10%) 15Hz Ethernet, Micro USB N/A 4W 9V-28V 250g 60mm x 60mm x 86mm

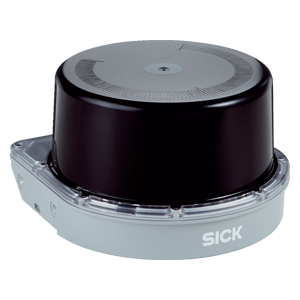

SICK

Features: Rugged 3D, 4-Layer LiDAR with Indoor/Outdoor Applications.
MRS 1000 275° 0.2m 64m 12.5Hz Ethernet 0.25° 7.5° 13W, 30W Startup 10V-30V 1.2kg 151.9mm x 150mm x 92.5mm
SICK

Features: Scans Four Layers Simultaneously. Reduced Weight for Aerial Applications. IP69K.
LDMRS-UAV 110° 0.5m 300m 12.5Hz to 50Hz Ethernet, RS232, CAN 0.125°, 0.25°, 0.5° 3.2° 8W 9V-27V 770g 88mm x 164.5mm x 91.3mm
SICK

Features: Scans Eight Layers Simultaneously. Weather Resistant and Suitable for Industrial Applications.
IP69K.
LD-MRS 110° 0.5m 300m 12.5Hz to 50Hz Ethernet, RS232, CAN 0.125°, 0.25°, 0.5° 3.2° 8W 9V-27V 770g 94mm x 165mm x 88mm
SICK

Features: 3D LiDAR With A Gap-Free Detection Across 24 Scanning Layers. IP65 And IP67.
MRS 6000 120° 0.5m 75m (90%) 10Hz Ethernet 0.13° (Horizontal) 0.625° (Vertical) 15° 20W 10V-29V 2.2kg 125.5mm x 176mm x 131mm
SICK

Features: SICK’s Smallest 2D LiDAR Sensor with The Highest Accuracy in Its Class. Lite Option Available.
IP67.
LMS 511 PRO 190° 0.5m 40m ±25mm (1m-10m), ±35mm (10m-20m), ±50mm (20m-30m) 25Hz – 100Hz Ethernet, RS232 0.167° to 1° 22W (+55W for Heat) 24V 3.7kg 160mm x 155mm x 185mm
Disclaimer: specifications are subject to change, without notice
