SICK LD-MRS

The LD-MRS multi-layer scanner is an efficient sensor solution for automation. It is immune to snow, rain and dust and is therefore particularly well-suited for rough outdoor industrial applications in stationary and mobile operation, such as in ports and surface mining, for measuring and for monitoring tasks as well as in industrial vehicles. The LD-MRS is available with object tracking or field evaluation. It scans and measures objects and areas on up to eight parallel planes simultaneously, which enables it to detect sloping lanes and compensate for the pitching movements of vehicles. It can also detect up to three consecutive echo pulses per measurement and plane. With its lightweight, compact and rugged design, it can be integrated easily into different applications.


LD-MRS400001 Datasheet

LD-MRS400001S01 Datasheet

LD-MRS800001S01 Datasheet

LD-MRS400102S01 HD Datasheet

LD-MRS400102 HD Datasheet
Category

LiDAR Products

Learn more about other LiDAR products

SEE MORE
Brand

More from SICK

Learn more about other SICK products

SEE MORE

Features

  • Simultaneous measurement on up to 8 planes compensates for vehicle pitch
  • Easy sensor integration due to light and compact design
  • Low operating costs due to low power consumption
  • Fast data output, even when processing a high amount of information
  • IP69K-rated housing ensures accurate measurements in difficult environmental conditions
  • Better detection due to flexible angular resolution in the scanning range
  • Data preprocessing allows tracking of up to 64 objects

LD-MRS400001

Features

VersionLong Range
Field of applicationOutdoor
Laser class1
Horizontal aperture angle85°, Working range with 4 measuring planes, 25° extension of working range with 2 measuring
planes to a total of 110°
Vertical aperture angle3.2°
Scanning frequency12.5 Hz … 50 Hz
Angular resolution0.125°, 0.25°, 0.5°
Operating range0.5 m … 300 m

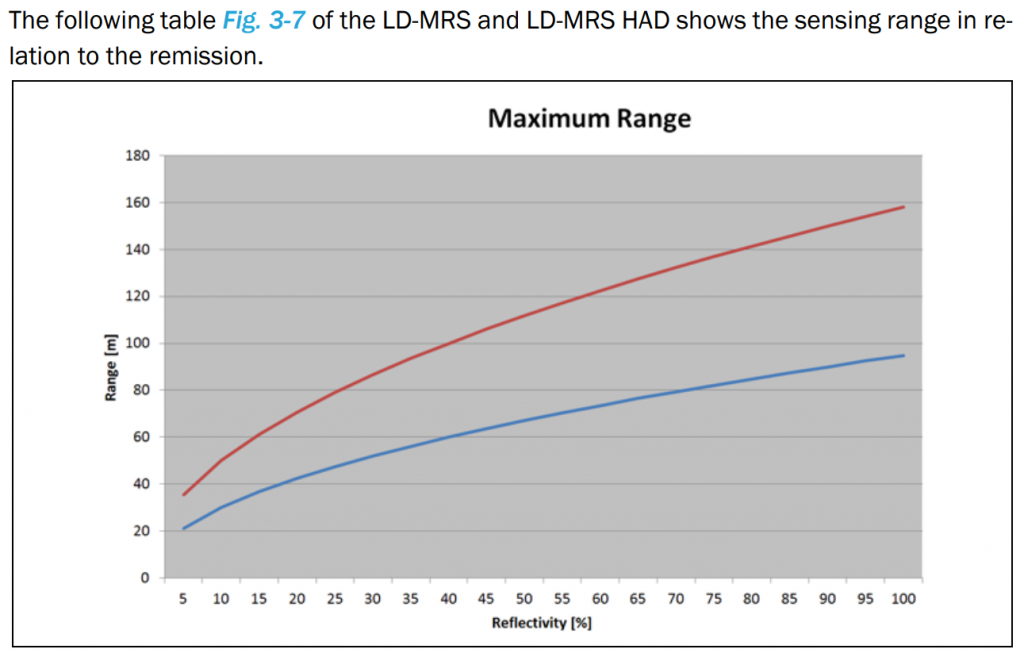

Max. range with 10 % reflectivity50 m
Amount of evaluated echoes3

LD-MRS400001S01

Features

VersionLong Range
Field of applicationOutdoor
Laser class1
Horizontal aperture angle85°, Working range with 4 measuring planes, 25° extension of working range with 2 measuring
planes to a total of 110°
Vertical aperture angle3.2°
Scanning frequency12.5 Hz … 50 Hz, object tracking at 12.5 Hz
Angular resolution0.125°
0.25°
0.5°
Operating range0.5 m … 300 m
Max. range with 10 % reflectivity50 m
Amount of evaluated echoes3

LD-MRS800001S01

Features

VersionLong Range
Field of applicationOutdoor
Laser class1
Horizontal aperture angle85°, operating angle with 8 measurement layers, 25° work area expansion with 4 measurement
layers (total 110°)
Vertical aperture angle4.2° … 6.4° (± 0.2°)
Scanning frequency12.5 Hz … 50 Hz, object tracking at 12.5 Hz
Angular resolution0.125°
0.25°
0.5°
Operating range0.5 m … 300 m
Max. range with 10 % reflectivity50 m
Amount of evaluated echoes3

LD-MRS400102S01-HD

Features

VersionLong Range
Field of applicationOutdoor
Laser class1
Horizontal aperture angle85°, Working range with 4 measuring planes, 25° extension of working range with 2 measuring
planes to a total of 110°
Vertical aperture angle3.2°
Scanning frequency12.5 Hz … 50 Hz, object tracking at 12.5 Hz
Angular resolution0.125°
0.25°
0.5°
Operating range0.5 m … 300 m
Max. range with 10 % reflectivity30 m
Amount of evaluated echoes3

LD-MRS400102-HD

Features

VersionLong Range
Field of applicationOutdoor
Laser class1
Aperture angle85°, Working range with 4 measuring planes, 25° extension of working range with 2 measuring
planes to a total of 110°
Scanning frequency12.5 Hz … 50 Hz
Angular resolution0.125°
0.25°
0.5°
Operating range0.5 m … 300 m
Max. range with 10 % reflectivity30 m
Amount of evaluated echoes3

Media

Downloads

  • LD-MRS400001 Datasheet
  • LD-MRS400001S01 Datasheet
  • LD-MRS800001S01 Datasheet
  • LD-MRS400102S01 HD Datasheet
  • LD-MRS400102 HD Datasheet
  • LiDAR Comparison Chart
