Kvaser Leaf Pro HS v2 OBDII

Kvaser Leaf Pro HS v2 OBDII is an evolution of the Leaf family that bring programmability to user’s fingertips, as well as CAN with Flexible Data-Rate (CAN FD). Kvaser’s Pro versions boast a high transmit capability that meets the needs of CAN FD frames. It also supports customization using Kvaser’s t programming language. For example, users can run a program to speed up file transfer protocols or to emulate ECUs and other devices by generating traffic and handling protocols. This model has a 16-pin OBDII connector, but a version with a standard 9-pin DSUB is also available. Please see Kvaser Leaf Pro HS v2 for details.

ROS driver available
Fully supported by your AStuff team


Leaf Pro HS v2 OBDII Datasheet
Category

Interface Tools Products

Learn more about other Interface Tools Products

SEE MORE
Brand

More from Kvaser

Learn more about other More from Kvaser

SEE MORE

Features

  • Supports CAN FD
  • Quick and easy plug-and-play installation
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
  • Power is taken from the USB bus
  • Galvanic isolation
  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet
  • Kvaser MagiSync provides automatic time synchronization between several PC-to-bus interfaces connected to the same PC
  • Programming functionality to support interface mode e.g. Optimize protocol handling, pre-filter CAN messages directly on the interface, or simulate missing hardware
  • Simultaneous operation of multiple devices

Specifications

Bitrate40-1,000 kbps
BuffersOn Board Buffer
CategoriesCAN, PC INTERFACES, Interfaces
CertificatesCE, RoHS
Channels1
ConnectorsOBD-II / J1962
Current Consumption195 mA
Error Counters ReadingYes
Error Frame GenerationYes
Galvanic IsolationYes
Height17 mm
InterfacesUSB
Length165 mm
MaterialPA66
Messages Per Second Receive20,000 mps
Messages Per Second Sending20,000 mps
OS
  • Win 10
  • Win Vista
  • Linux
  • Win 8
  • Win 7
  • Win XP
Silent ModeYes
SoundNo
Temp Range-45 – 85 °C
Timestamp R (μ)1 μs
Weight120 g

Media

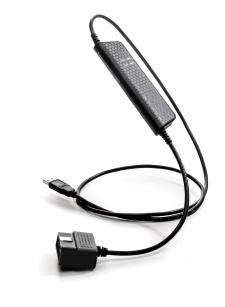

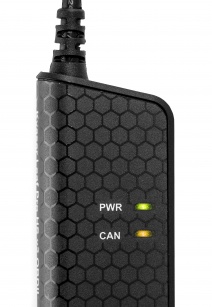

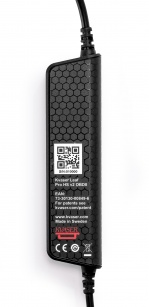

Leaf Pro HS v2 OBDII Leaf Pro HS v2 OBDII Leaf Pro HS v2 OBDII

Downloads

  • Leaf Pro HS v2 OBDII Datasheet
