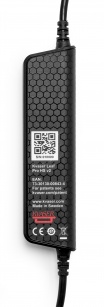

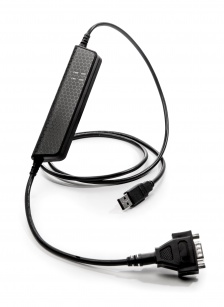

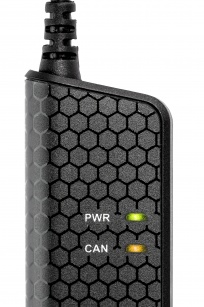

Kvaser Leaf Pro HS v2
Kvaser Leaf Pro HS v2 is an evolution of the Leaf family that bring programmability to user’s fingertips, as well as CAN with Flexible Data-Rate (CAN FD). Kvaser’s Pro versions boast a high transmit capability that meets the needs of CAN FD frames. It also supports customization using Kvaser’s t programming language. For example, users can run a program to speed up file transfer protocols or to emulate ECUs and other devices by generating traffic and handling protocols. This model has a standard 9-pin DSUB, bus is also available with a 16-pin OBDII connector. Please see Kvaser Leaf Pro HS v2 OBDII for details.
ROS driver available
Fully supported by your AStuff team
Leaf Pro HS v2 Datasheet
- Supports CAN FD
- Quick and easy plug-and-play installation
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
- Power is taken from the USB bus
- Galvanic isolation
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s
- Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet
- Kvaser MagiSync provides automatic time synchronization between several PC-to-bus interfaces connected to the same PC
- Programming functionality to support interface mode e.g. Optimize protocol handling, pre-filter CAN messages directly on the interface, or simulate missing hardware
- Simultaneous operation of multiple devices
| Bitrate | 40-1,000 kbps |
|---|---|
| Buffers |
|
| Categories | PC INTERFACES, Interfaces |
| Certificates | CE, RoHS |
| Channels | 1 |
| Connectors | DSUB 9 |
| Current Consumption | 195 mA |
| Error Counters Reading | Yes |
| Error Frame Generation | Yes |
| Galvanic Isolation | Yes |
| Height | 17 mm |
| Interfaces | USB |
| Length | 165 mm |
| Material | PA66 |
|---|---|
| Messages Per Second Receive | 20,000 mps |
| Messages Per Second Sending | 20,000 mps |
| OS |
|
| Silent Mode | Yes |
| Sound | No |
| Temp Range | -40 – 85 °C |
| Timestamp R (μ) | 1 μs |
| Weight | 120 g |
