AStuff Spectra 2

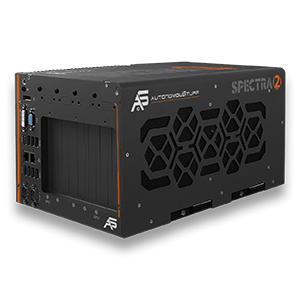

The AutonomouStuff Spectra 2 is the world’s first dual GPU edge ai platform with industrial-grade design and in-vehicle features. Designed specifically to support two high-end 250W NVIDIA® graphics cards, it offers tremendous GPU power up to 28 TFLOPS in FP32 for emerging GPU-accelerated edge computing, such as autonomous driving, vision inspection and surveillance/security.
AStuff Spectra 2 Datasheet
- Intel XEON E2278G 8th Gen 2.1/4.4GHz 8C | 12T, 80W TDP processor
- 64GB DDR4-2666Mhz SODIMM (2X32GB)
- (1) 512GB M.2 2280 Solid State Drive Primary
- (1) 1TB 2.5” SATA III Solid State Drive
- (1) RTX QUADRO A4000
- Supports dual 250W NVIDIA GPUs (optional)
- Supports 8th/9th-Gen Intel® Core™ i7/i5 LGA1151, Xeon® E
- Up to 128GB ECC/ non-ECC DDR4 2133 (4x SODIMM)
- Two x16, Two x8, one x4, Gen3 PCIe slots
- Two hot-swappable 2.5” SATA HDD/ SSD with RAID 0/ 1 support
- 12-35V wide-range DC input with ignition control
- Operating temperature range: -25°C to 60°C
- Up to 3Grms vibration
System core
| Processor | Supporting Intel® Xeon® E and 8th/ 9th-Gen CPU
(LGA1151 socket)
|
|---|---|
| Chipset | Intel® C246 platform controller hub |
| Graphics | Independent GPU via x16 PEG port, or integrated Intel® UHD Graphics 630 |
| Memory | Up to 128 GB ECC/non-ECC DDR4 2133 SDRAM (four SODIMM slots) |
I/O interface
| Ethernet |
1× Gigabit Ethernet port by Intel® I219-LM |
|---|---|
| Native video port |
1× VGA connector, supporting 1920×1200 resolution |
| Serial port | 2× software-programmable RS-232/422/485 ports (COM1/COM2) |
| USB |
4× USB 3.1 Gen2 (10 Gbps) ports |
| Audio | 1× 3.5 mm jack for mic-in and speaker-out |
Storage interface
| SATA | 2× hot-swappable HDD trays for 2.5” HDD/ SSD installation (support RAID 0/1) |
|---|---|
| M.2 | 1× M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation |
| mSATA | 2× full-size mSATA port (mux with mini-PCIe) |
Expansion bus/Internal I/O Interface
| PCI Express | 2× PCIe x16 slot@Gen3, 8-lanes 2× PCIe x8 slots@Gen3, 4-lanes 1× PCIe x4 slot@Gen3, 1-lane |
|---|---|
| M.2 | 1× M.2 2242 B key socket supporting dual SIM mode with selected M.2 LTE module |
| mini-PCIe | 2× full-size mini PCI Express socket |
Power supply
| DC input | 2× 4-pin pluggable terminal block for 8V to 35V DC input and 1x 3-pin ignition control */** |
|---|
Mechanical

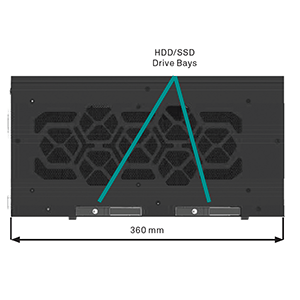

| Dimension | 235 mm (W) × 360 mm (D) × 185.6 mm (H) |
|---|---|
| Weight | 8.6 kg |
| Mounting | Wall-mounting with damping bracket |
Environmental
| Operating temperature | with 35W CPU and dual NVIDIA® 250W GPU: -25°C ~ 60°C **** with >= 65W CPU and dual NVIDIA® 250W GPU: -25°C ~ 60°C **** (configured as 35W TDP mode) -25°C ~ 50°C ***/**** (configured as 65W TDP mode) |
|---|---|
| Storage temperature | -40°C to 85°C |
| Humidity | 10–90%, non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4; and 3 Grms, 5-500 Hz, 3 Axes |
| EMC | CE/FCC Class A, according to EN 55024 & EN 55032 |
* When NVIDIA® graphics card is used (single or dual), DC input should be greater than 12V. ↩
** Max current for DC input is 30A (per PWR pin) and max power consumption for the system is 1000W. ↩
*** For i7-8700 and i7-9700E running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature. ↩
**** For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required. ↩
