LUCID Triton 3.2 MP

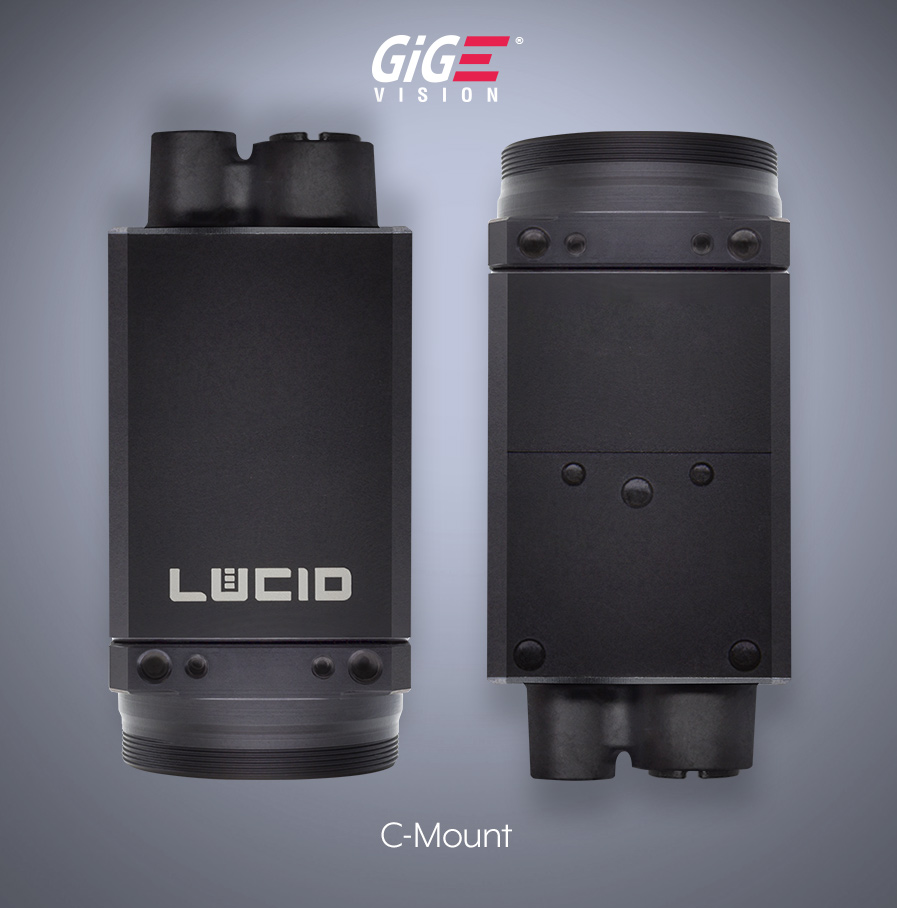

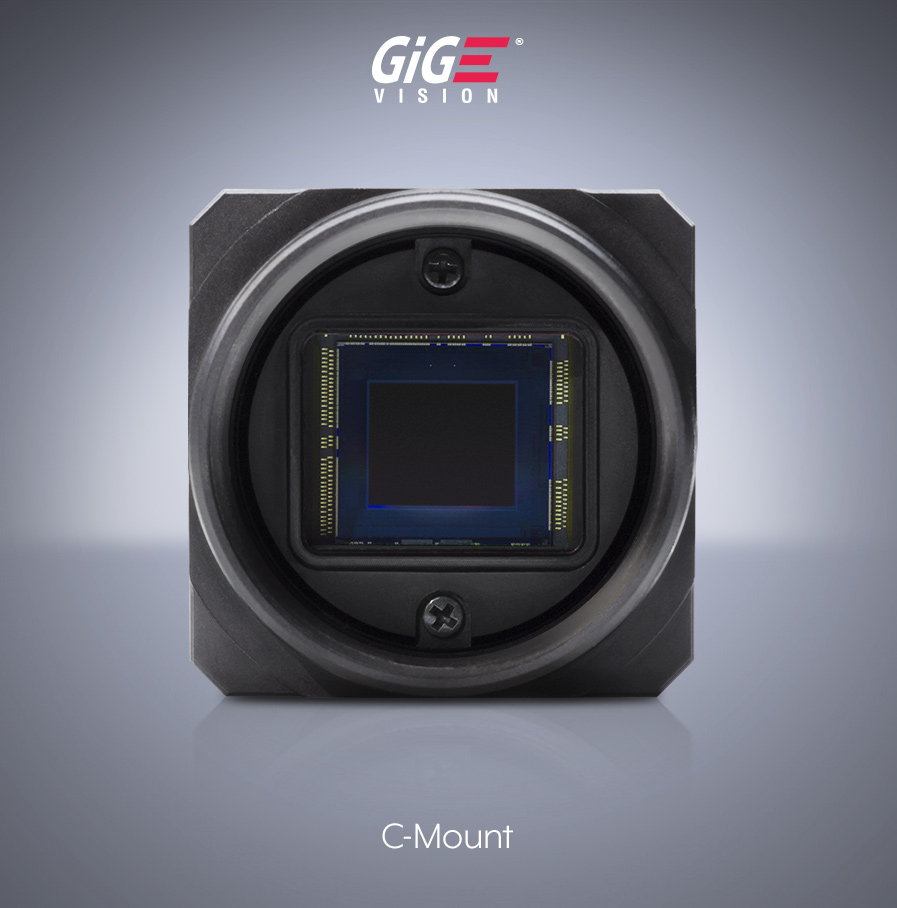

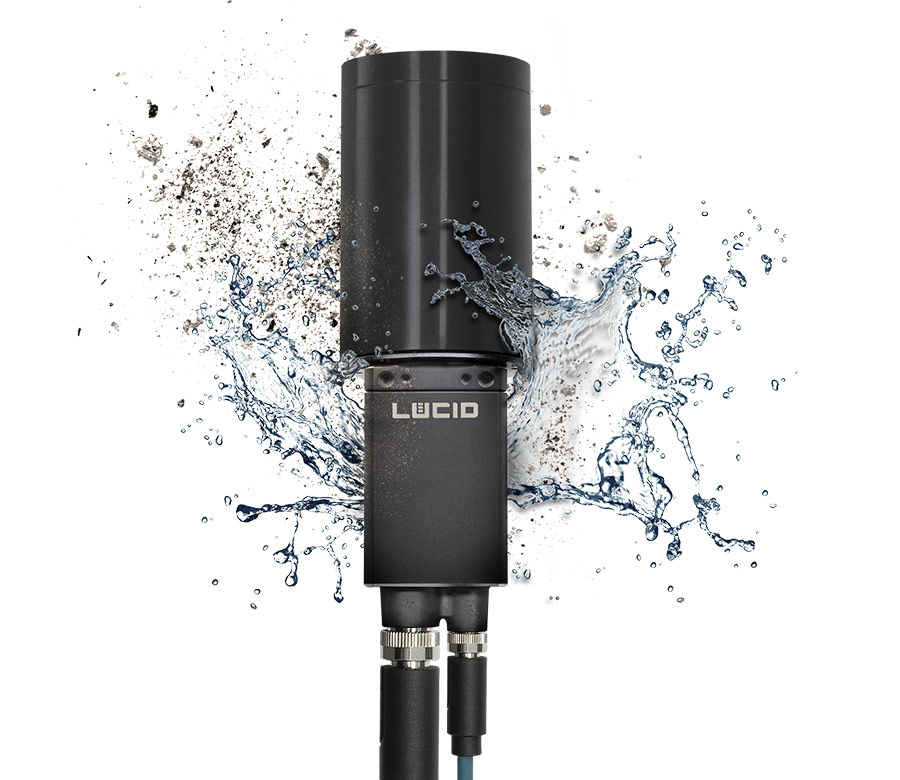

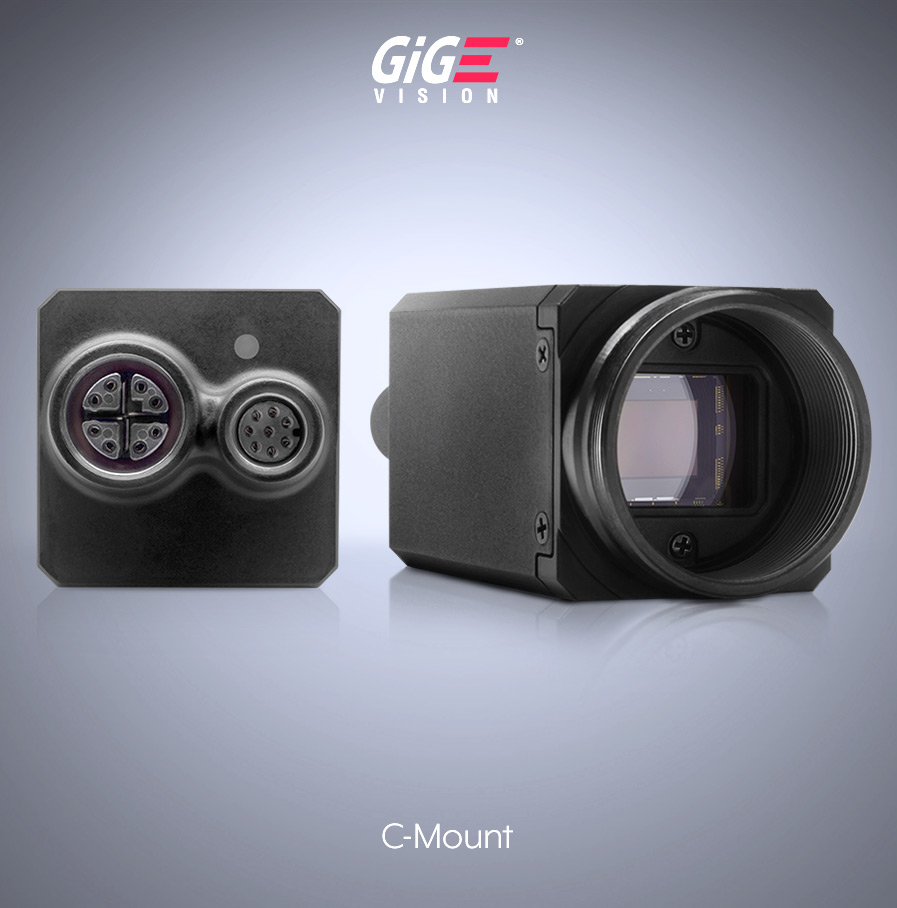

The LUCID Vision Labs Triton 3.2 MP camera with IP67 C-Mount 50mm Lens Tube is lightweight and compact. The Triton’s electronics are housed in a sealed two-piece aluminum case secured by 4 M2 screws. The M12 connector for Ethernet and M8 connector for GPIO provide a robust and sturdy connection resistant to shock and vibration. For even more protection, an optional IP67 lens tube can be attached for dust proof and water resistant operation, eliminating the need for an external case. All Triton cameras are actively aligned to minimize image sensor tilt, image sensor rotation, and to place the center of the image sensor at the lens optical axis. Our six degrees of freedom manufacturing process accurately and precisely positions the image sensor to the lens mount so that images are sharp and crisp, even in the corners.

Category

Vision Products

Learn more about other Vision Products

SEE MORE
Brand
Lucid logo

More from LUCID Vision Labs

Learn more about other LUCID Vision Labs products

SEE MORE

Features

  • IP67
  • GiGE Vision (PoE)
  • M12 & M8 connectors
  • Small & light
  • Active sensor alignment
  • Global shutter
  • 29 × 29 × 45 mm
  • 67 grams
  • -20°C to 55°C
  • Waterproof lens enclosures available
  • Sony Pregius sensors
  • Arena SDK

Specifications

Sensor Properties
Sensor ModelSony IMX265 CMOS
Shutter TypeGlobal
Sensor Size8.9 mm (Type 1/1.8″)
Resolution2048 × 1536 px, 3.2 MP
Pixel Size3.45 μm (H) × 3.45 μm (V)
Framerate38 FPS @ 3.2 MP
Physical Properties
Dimensions29 × 29 × 44.5 mm
Lens MountC-Mount
Weight67 g
Interface and Power Information
Digital Interface1000BASE-T GigE M12, PoE
GPIO Interface8 pin M8 connector
Opto-Isolated I/O Ports1 input, 1 output
Non-Isolated I/O Ports2 bi-directional
Power RequirementPoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption3.1W via PoE, 2.5W when powered externally

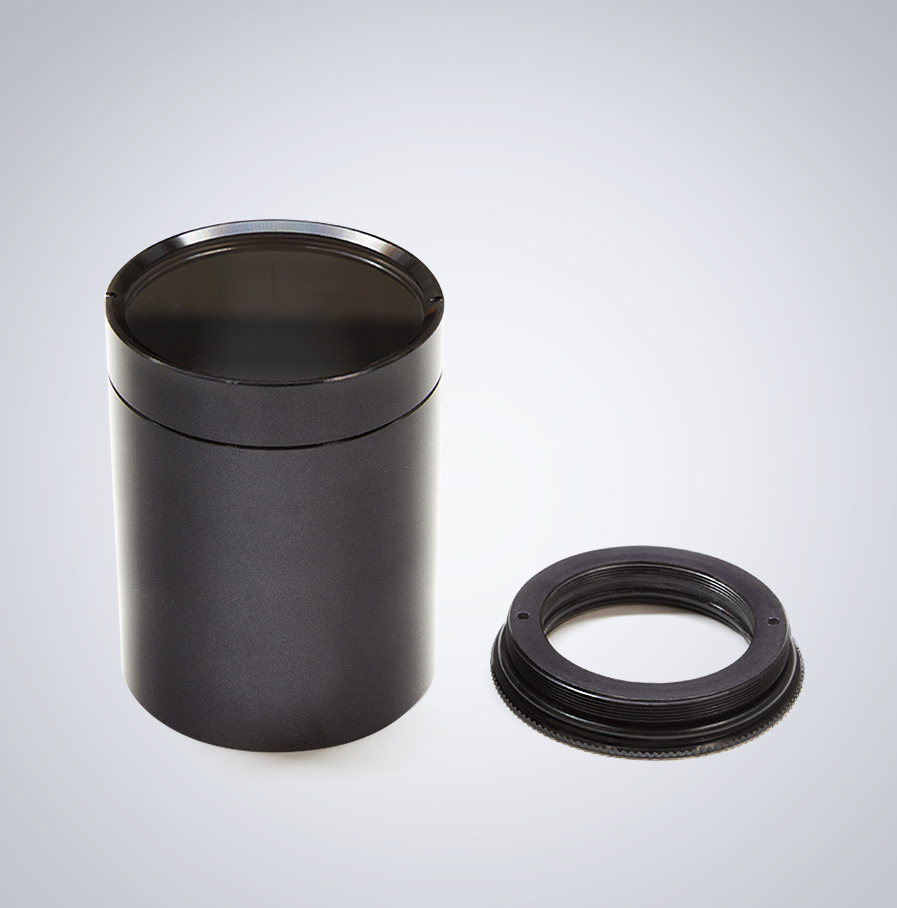

IP67 C-Mount 50mm Lens Tube
Length50mm
Outer Diameter41.0mm
Inner Diameter35.5mm
Model #IPT-C50
Imaging Properties
Image Buffer128 MB
Image ProcessingGain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
Pixel FormatsMono8/10/12/16, Bayer8/10/12/16, RGB8, YUV422, YUV411
Image ModesHorizontal and vertical binning, decimation, ROI, horizontal and vertical flip
ADC12 bit
Gain Range0 dB to 48 dB analog and digital
Exposure Time30 μs to 10 s
Camera Features
User Sets1 default and 2 custom user set
File System Size16 MB
Chunk DataTimestamp, frame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set
Event DataAcquisition start/end, exposure start/end, line rise/fall, error
Counter & Timer2 counters and 2 timers
SequencerExposure time, gain
SynchronizationSoftware trigger, hardware trigger, PTP (IEEE 1588)
Standards and Certifications
StandardGigE Vision v2.0
ComplianceCE, FCC, RoHS, REACH, WEEE
Storage Temperature-30 to 60°C
Operating Temperature-20 to 55°C ambient
HumidityOperating: 20% ~ 80%, relative, non-condensing
Warranty3 year
