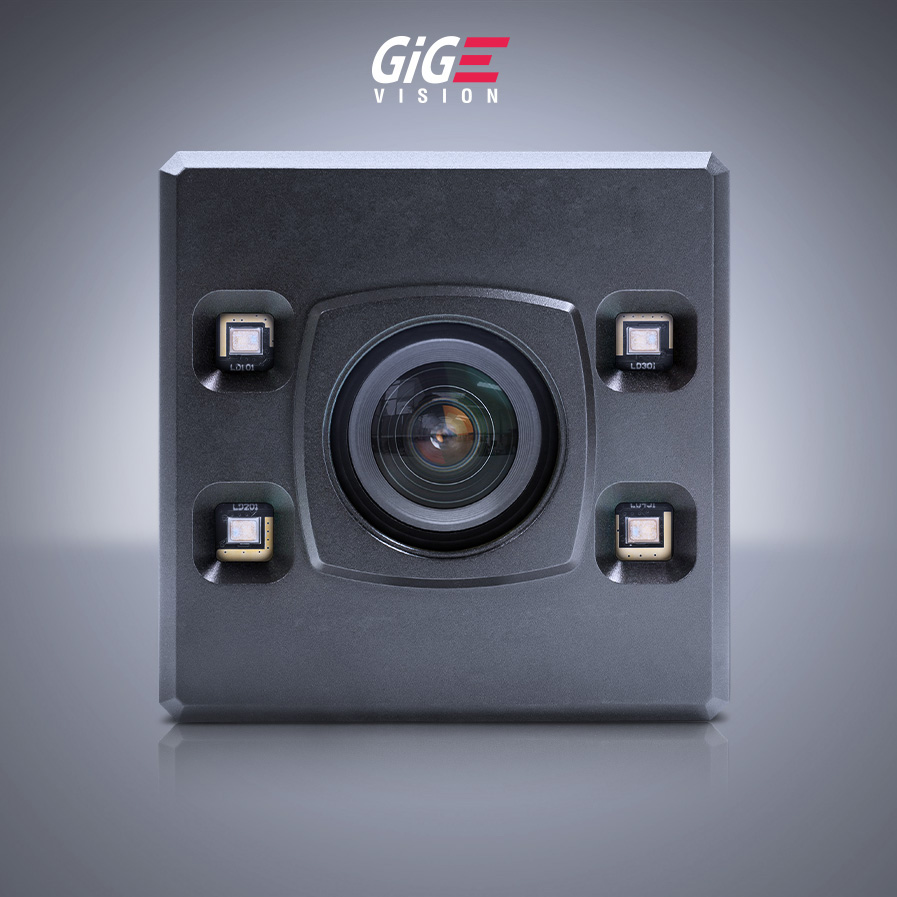

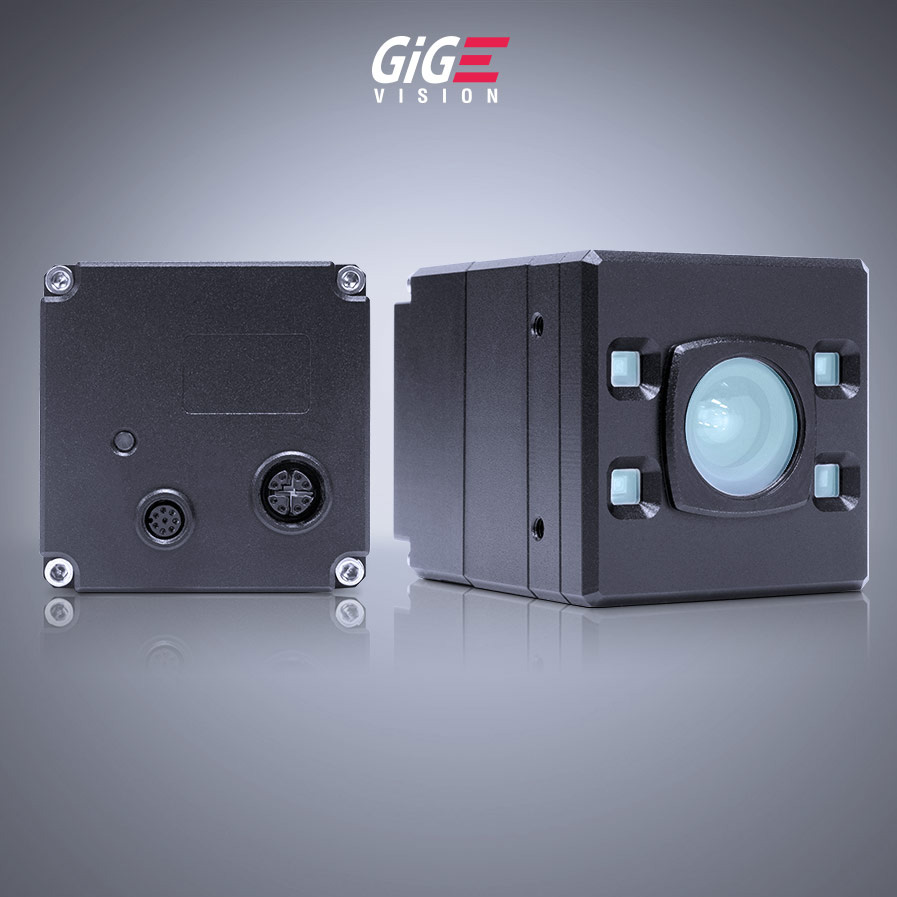

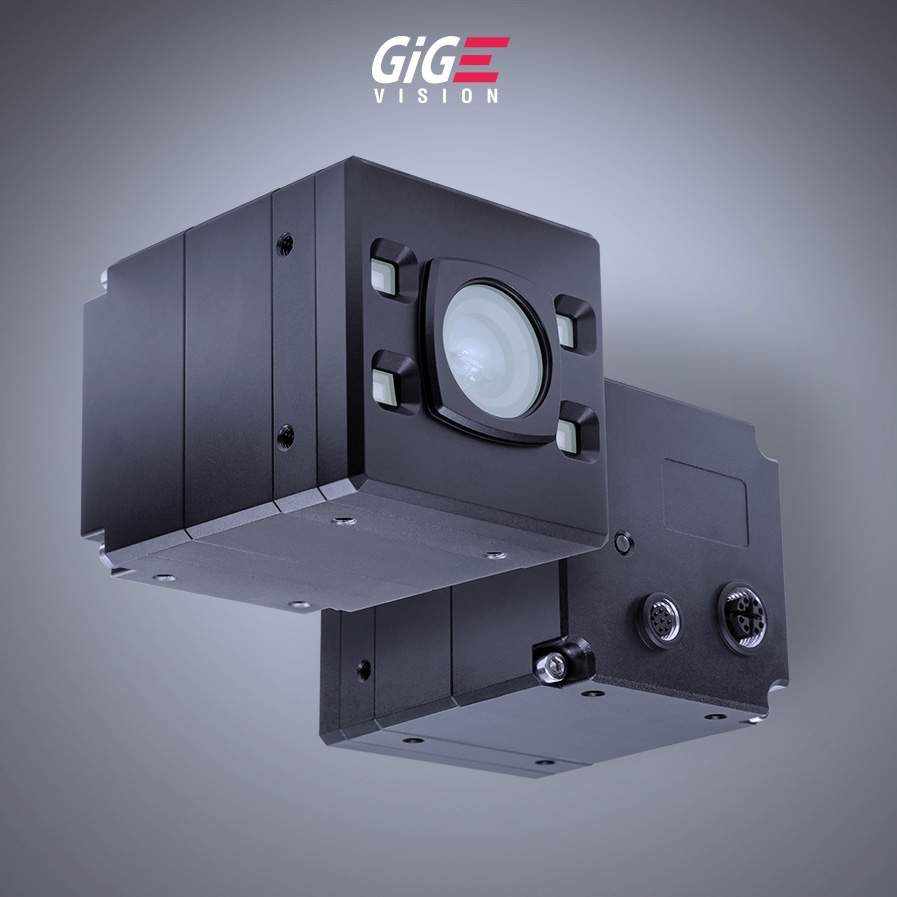

LUCID Helios2 Time of Flight (ToF) IP67 3D Camera

This Helios2 camera model offers improved accuracy and precision compared to the original Helios. In addition, it offers IP67 protection, higher industry immunity standards, Power over Ethernet, and a farther working range of 8.3 m.

LUCID Helios2 Datasheet
Category

Vision Products

Learn more about other Vision Products

SEE MORE
Brand
Lucid logo

More from LUCID Vision Labs

Learn more about other LUCID Vision Labs products

SEE MORE

Features

  • High Accuracy with Sub-millimetre Precision
  • IP67 Protection, Industrial Immunity
  • Sony DepthSense IMX556 Sensor, 640 x 480 at 30FPS
  • 8.3 m Working Distance
  • M12 and M8 Connectors

Specifications

Interface and power information

Digital Interface 1000BASE-T GigE, M12 X-coded, PoE
GPIO Interface 8 pin M8 connector
Opto-Isolated I/O Ports 1 input (2.5V-24V and 10.5V-24V), 1 output
Non-Isolated I/O Ports 2 bi-directional
Power Requirement PoE+ (IEEE 802.3at) or 18-24 V through GPIO
Power Consumption 12-24Vdc, Pavg <12W, <30W peak power

Sensor properties

Sensor Model Sony DepthSense IMX556PLR CMOS
Shutter Type Global
Sensor Size 8 mm (Type 1/2″)
Resolution 640 x 480 px, 0.3 MP
Pixel Size 10.0 µm (H) x 10.0 µm (V)
Framerate 30 FPS @ 0.3 MP (for all operating modes)

Physical properties

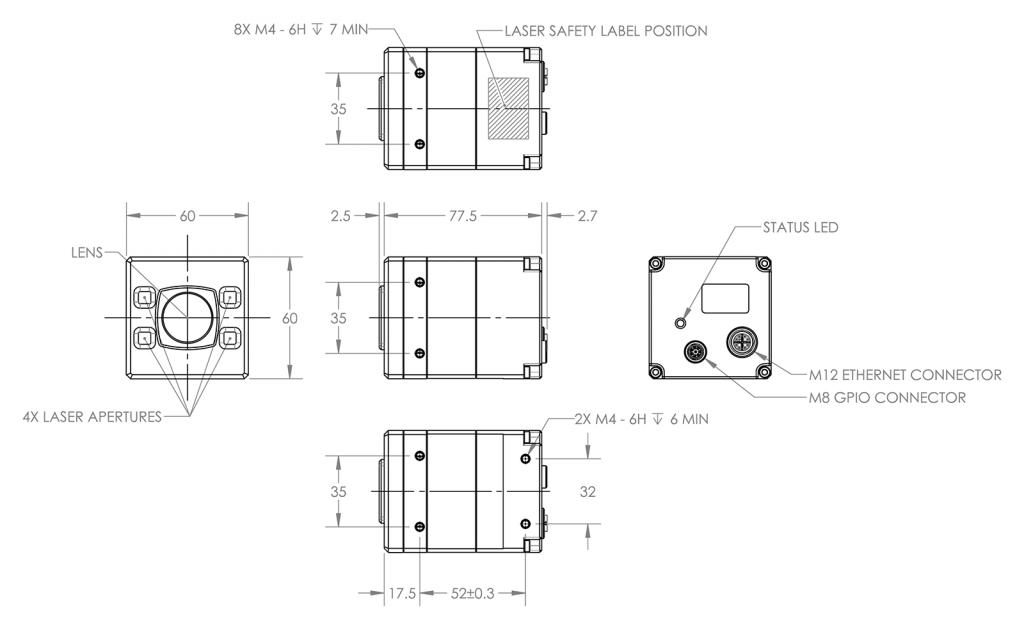

Dimensions 60 x 60 x 77.5 mm
Weight 398 g
Ingress Protection IP67 (For IP67 protection Helios2 must be used with IP67 cables)
Ambient Light Filter Yes, integrated on-camera
Lens Field of View 69⁰ x 51⁰ (nominal)
Illumination 4 x VCSEL laser diodes, Class 1, @ 850nm

Standard and certifications

Standard GigE Vision v2.0, GenICam 3D
Compliance CE, FCC, RoHS, REACH, WEEE,
Eye Safety Class 1 IEC/EN 60825-1:2014
Operating Temperature -20° to 50°C (Case Temperature)
Shock and Vibration DIN EN 60068-2-27, DIN EN 60068-2-64
Industrial EMC Immunity DIN EN 61000-6-2
OS Support Windows and Linux
Software Support Arena SDK, C++, C, C#, Python

Pixel formats

Range Data
Coord3D_ABCY16 4-ch point cloud XYZ + Intensity, 16 bits per channel, unsigned
Coord3D_ABC16 3-ch point cloud XYZ, 16 bits per channel, unsigned
Coord3D_C16 Depth map Z plane, 16 bits, unsigned
Intensity Image
Mono8 8 bit per pixel monochrome raw image
Mono12Packed 12 bit per pixel monochrome raw image
Mono12p 12 bit per pixel in bit stream, monochrome raw image
Mono16 16 bit per pixel monochrome raw image
Confidence Data
Confidence16 Confidence map, 16 bits

Imaging properties

Exposure Control Manual, 3 settings: 62.5 μs, 250 μs or 1000 μs
Gain Control Manual, 2 settings: High or Low
Synchronization Software trigger, hardware trigger, PTP (IEEE 1588)
Output Format Binary .PLY file (via Arena SDK)

Camera features

User Sets 1 default and 2 custom user set
Working Distance 0.3 m to 8.33 m
Operating Distance Modes 6 Modes: (1) 1250 mm, (2) 3000 mm, (3) 4000 mm, (4) 5000 mm, (5) 6000 mm, (6) 8333 mm
Accuracy See Performance Tab
Precision (Depth Noise) See Performance Tab
Communication Channels 5 Channels. Allows users to operate up to 5 Helios2 cameras without interference between cameras.
Flying Pixel Filter Yes
