Kvaser USBcan Light 4xHS

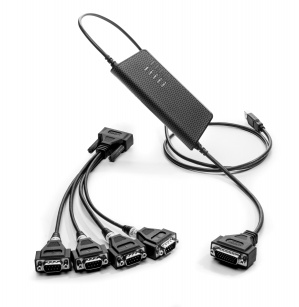

The USBcan Light 4xHS is a compact, reliable and cost-effective means of connecting four high speed CAN buses to a PC or mobile computer. With galvanic isolation as standard, this USB to quad channel CAN interface has a standard USB connector at one end and four high speed CAN channels in a single 26-pin HD D-SUB CAN connector at the other. The supplied HD26-4xDS9 splitter can be used to connect to four separate 9pin DSUB connectors.

ROS driver available
Fully supported by your AStuff team


USBcan Light 4xHS Datasheet
Category

Interface Tools Products

Learn more about other Interface Tools Products

SEE MORE
Brand

More from Kvaser

Learn more about other More from Kvaser

SEE MORE

Features

  • Low cost USB CAN interface
  • Quick and easy plug-and-play installation
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
  • Power is taken from the USB bus
  • Galvanic isolation
  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet
  • Simultaneous operation of multiple devices
  • Includes 4 channel breakout cable

Specifications

Bitrate50-1,000 kbps
BuffersOn Board Buffer
CategoriesPC INTERFACES, Interfaces
CertificatesCE, RoHS
Channels4
Connectors26-pin HD D-SUB
Current Consumption500 mA
Error Counters ReadingNo
Error Frame GenerationNo
Galvanic IsolationYes
Height68 mm
InterfacesUSB
Length170 mm
MaterialPA66
Messages Per Second Receive8,000 mps
Messages Per Second Sending8,000 mps
OS
  • Win 10
  • Win Vista
  • Linux
  • Win 8
  • Win 7
  • Win XP
Silent ModeNo
SoundNo
Temp Range-20 – 70 °C
Timestamp R (μ)100 μs
Weight150 g

Media

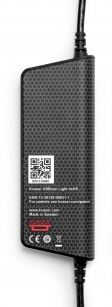

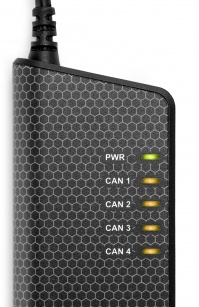

USBcan Light 4xHS USBcan Light 4xHS USBcan Light 4xHS

Downloads

  • USBcan Light 4xHS Datasheet
