Kvaser PCIEcan 4xHS

Kvaser PCIEcan 4xHS is a highly integrated, high speed CAN network card that adds four high-speed controller area network (CAN) channels to any standard computer board with PCI Express capability. Offering silent mode, error frame detection and an onboard buffer, this small form factor add-on board fits many embedded data acquisition systems and supports CAN FD.

ROS driver available
Fully supported by your AStuff team


PCIEcan 4xHS Datasheet
Category

Interface Tools Products

Learn more about other Interface Tools Products

SEE MORE
Brand

More from Kvaser

Learn more about other More from Kvaser

SEE MORE

Features

  • Supports CAN FD
  • Quick and easy plug-and-play installation
  • Supports High Speed CAN (ISO 11898-2)
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
  • Low profile card (86 x 69 mm) allows ultra-compact systems
  • Implements Kvaser’s CAN IP in an FPGA, resulting in high max message rate

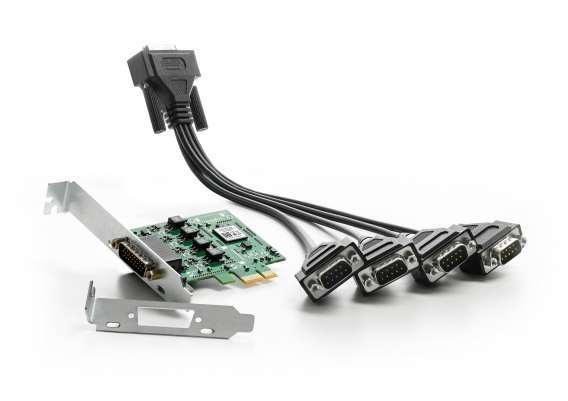

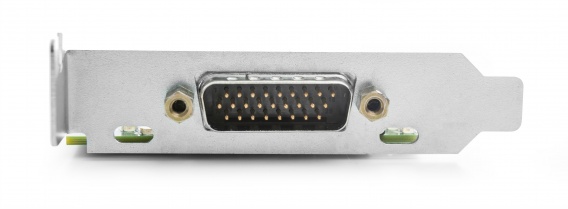

  • Four CAN Hi-Speed channels in a single 26-pin HD D-SUB CAN connector. The HD26 splitter connects to the CAN bus via four 9-pin DSUB connectors

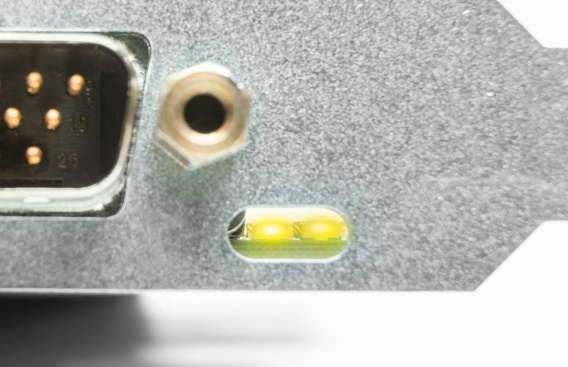

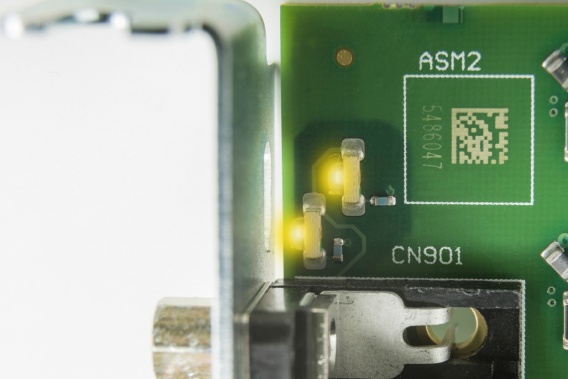

  • Four yellow LEDs that indicate when a CAN message was received or sent
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet
  • Supports silent mode for analysis tools – listens to the bus without interfering
  • Detection and generation of error frames and remote frames
  • Designed for standard and industrial computers
  • Galvanically isolated CAN bus drivers
  • Wide operating temperature of 0°C to +85°C
  • Supports the Kvaser Linx

Specifications

BuffersOn Board Buffer
CategoriesPC INTERFACES, Interfaces
CertificatesCE, RoHS
Channels4
Connectors26-pin HD D-SUB
Error Counters ReadingNo
Error Frame GenerationYes
Galvanic IsolationYes
Height20 mm
InterfacesPCI Express
Length90 mm
Messages Per Second Receive20,000 mps
Messages Per Second Sending20,000 mps
OS
  • Win 10
  • Win Vista
  • Linux
  • Win 8
  • Win 7
  • Win XP
Silent ModeYes
SoundNo
Temp Range-20 – 70 °C
Timestamp R (μ)1 μs
Weight100 g

Media

1234

Downloads

  • PCIEcan 4xHS Datasheet
