Kvaser Leaf Light HS v2 OBDII

The Leaf Light v2 OBDII provides a simple way of connecting a PC with a vehicle’s onboard computer by means of USB 2.0 connector and a 16-pin OBDII-compliant CAN connector. Having made its name as the work-horse of USB to CAN interfaces, Kvaser’s Leaf Light product series provides reliable, low-cost tools for connecting any CAN network to a PC or mobile computer in vehicle diagnostic applications and beyond.

ROS driver available
Fully supported by your AStuff team


Leaf Light HS v2 OBDII Datasheet
Category

Interface Tools Products

Learn more about other Interface Tools Products

SEE MORE
Brand

More from Kvaser

Learn more about other More from Kvaser

SEE MORE

Features

  • The Kvaser Leaf Light HS V2 OBDII offers loss free transmission and reception of standard and extended CAN messages on the CAN bus.
  • Supports high speed USB and has an OBD2-compliant connector.
  • 8000 messages per second, each time-stamped with 100 microsecond accuracy.
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
  • Galvanic isolation, enhancing protection from power surges or electrical shocks.

Specifications

Bitrate40-1,000 kbps
BuffersOn Board Buffer
CategoriesPC INTERFACES, Interface
CertificatesCE, RoHS
Channels1
ConnectorsOBD-II / J1962
Current Consumption90 mA
Error Counters ReadingNo
Error Frame GenerationNo
Galvanic IsolationYes
Height20 mm
InterfacesUSB
Length100 mm
MaterialPA66
Messages Per Second Receive8,000 mps
Messages Per Second Sending8,000 mps
OS
  • Win 10
  • Win Vista
  • Linux
  • Win 8
  • Win 7
  • Win XP
Silent ModeNo
SoundNo
Temp Range-20 – 70 °C
Timestamp R (μ)100 μs
Weight100 g

Media

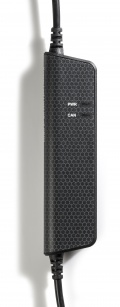

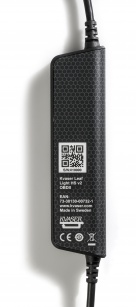

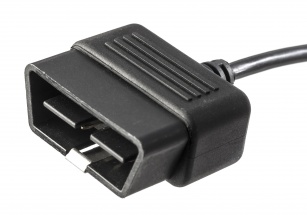

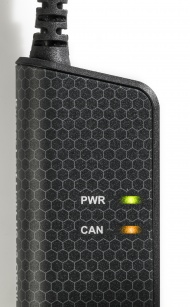

Leaf Light HS v2 OBDII Leaf Light HS v2 OBDII Leaf Light HS v2 OBDII Leaf Light HS v2 OBDII

Downloads

  • Leaf Light HS v2 OBDII Datasheet
