Kvaser Leaf Light HS v2 CB

The Leaf Light v2 CB is the bare circuit board version of Kvaser’s popular Leaf Light v2 interface – a single-channel, high speed, USB-to-CANbus interface. Having made its name as the work-horse of USB to CAN interfaces, Kvaser’s Leaf Light product series provides reliable, low-cost connection to the PC.

ROS driver available
Fully supported by your AStuff team


Leaf Light HS v2 CB Datasheet
Category

Interface Tools Products

Learn more about other Interface Tools Products

SEE MORE
Brand

More from Kvaser

Learn more about other More from Kvaser

SEE MORE

Features

  • The Kvaser Leaf Light HS V2 CB is a high speed USB interface for CAN that offers loss free transmission and reception of standard and extended CAN messages on the CAN bus
  • Both USB and CAN are connected using 6-way connectors and mate with Molex 51021 PicoBladeTM (e.g. housing 51021-0600 and terminal 50079-8000)
  • 8000 messages per second, each time-stamped with 100 microsecond accuracy
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s
  • Galvanic isolation, enhancing protection from power surges or electrical shocks
  • Local buffering and preprocessing results in high performance and a reduction of time critical tasks for the PC

Specifications

Bitrate40-1,000kbps
BuffersOn Board Buffer
CategoriesPC INTERFACES, Interfaces
CertificatesCE, RoHS
Channels1
ConnectorsMOLEX 6-PIN
Current Consumption90mA
Error Counters ReadingNo
Error Frame GenerationNo
Galvanic IsolationYes
Height5 mm
InterfacesUSB
Length100 mm
MaterialPA66
Messages Per Second Receive8,000 mps
Messages Per Second Sending8,000 mps
OS
  • Win 10
  • Win Vista
  • Linux
  • Win 8
  • Win 7
  • Win XP
Silent ModeNo
SoundNo
Temp Range-20 – 70 °C
Timestamp R (µ)100 µs
Weight100 g

Media

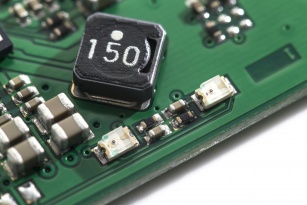

Leaf Light HS v2 CB

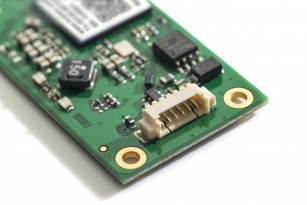

Leaf Light HS v2 CB

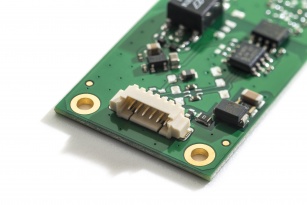

Leaf Light HS v2 CB

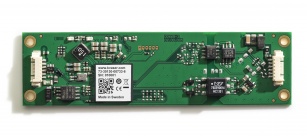

Leaf Light HS v2 CB

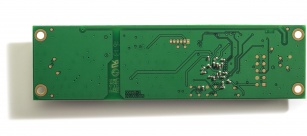

Leaf Light HS v2 CB

Downloads

  • Leaf Light HS v2 CB Datasheet
